Standard vesselsConfigurator
We offer you standard vessels from 50 liters to 3,000 liters with 11 and 16 bar. High-pressure vessels, vacuum vessels, and other pressure vessels are also available and can be coated according to your requirements.
▲
- 50 l
- 90 l
- 150 l
- 250 l
- 350 l
- 500 l
- 750 l
- 1,000 l
- 1,500 l
- 2,000 l
- 3,000 l
▼
Details

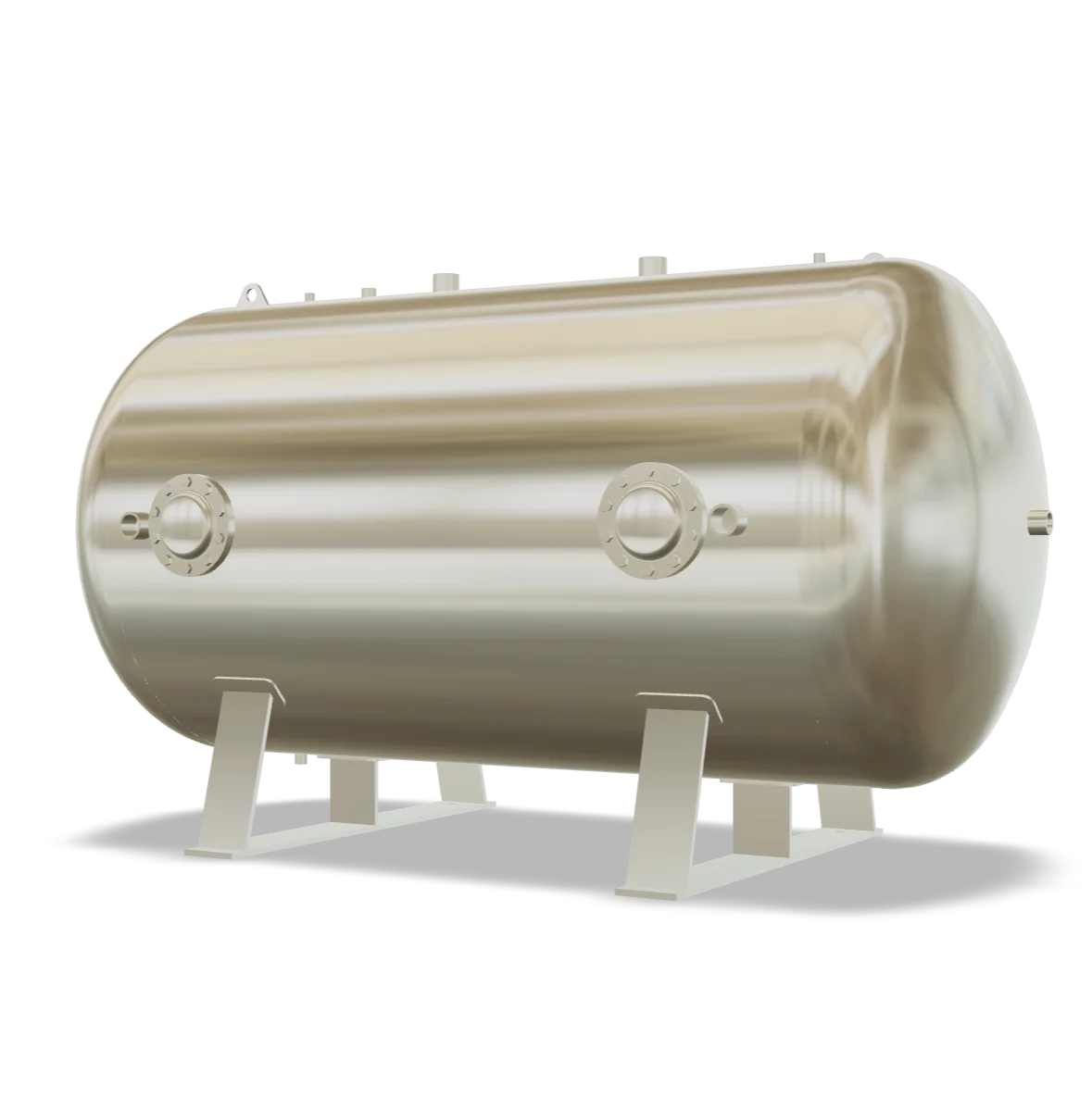

Vacuum vessels 3,000 Liters, -1 bar, liegend
MB 101095-0.3000
Features
Built according to
DGRL 2014/68/EU – AD 2000, Module: H1
DGRL 2014/68/EU – AD 2000, Module: H1
Operating Conditions
AD 2000 – S1 (10/2000): 1000 start-ups and 20% pressure fluctuation range
AD 2000 – S1 (10/2000): 1000 start-ups and 20% pressure fluctuation range
Ambient Temperatures
-20°C to +50°C
-20°C to +50°C
Dimensions
Approx. Weight
630 kg
630 kg
Diameter
1,250 mm
1,250 mm
Height
1,450 mm
1,450 mm
Augmented Reality (AR)
Shipping Information
Dimensions (LxWxH)
2,630 x 1,250 x 1,490 mm
2,630 x 1,250 x 1,490 mm
Approx. Weight
630 kg
630 kg
Country of Origin
Germany
Germany
Customs Tariff Number
731 100 91
731 100 91
Drawing
MB 101095-0.3000G
Primed
MB 101095-0.3000V
Galvanized
Illustrations and details may differ from the original.
