Standard vesselsConfigurator
We offer you standard vessels from 50 liters to 3,000 liters with 11 and 16 bar. High-pressure vessels, vacuum vessels, and other pressure vessels are also available and can be coated according to your requirements.
▲
- 50 l
- 90 l
- 150 l
- 250 l
- 350 l
- 500 l
- 750 l
- 1,000 l
- 1,500 l
- 2,000 l
- 3,000 l
- 4,000 l
- 5,000 l
- 6,000 l
- 7,000 l
- 8,000 l
- 9,000 l
- 10,000 l
▼
Details

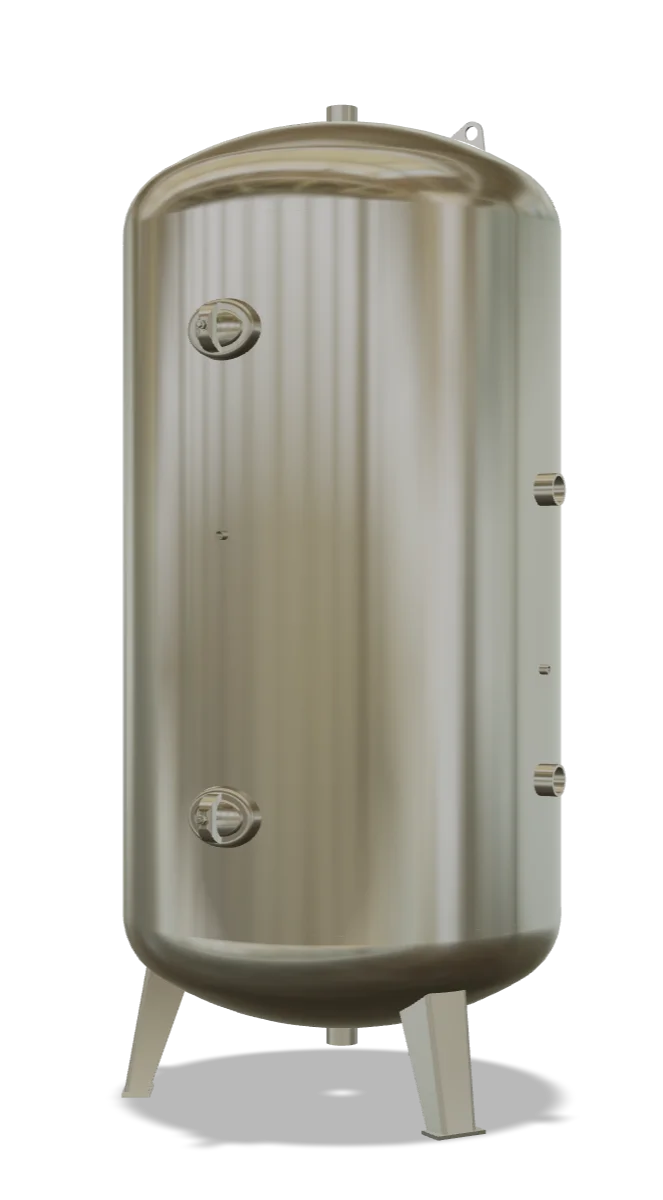

Pressure vessels 3,000 Liters, 11 bar, stehend (Handhole)
MB 020103-1.3000
Features
Built according to
DGRL 2014/68/EU – AD 2000, Module: H1
DGRL 2014/68/EU – AD 2000, Module: H1
Operating Conditions
AD 2000 – S1 (10/2000): 1000 start-ups and 20% pressure fluctuation range
AD 2000 – S1 (10/2000): 1000 start-ups and 20% pressure fluctuation range
Ambient Temperatures
-20°C to +50°C
-20°C to +50°C
Dimensions
Approx. Weight
660 kg
660 kg
Diameter
1,250 mm
1,250 mm
Height
2,760 mm
2,760 mm
Tilting Dimension
2,850 mm
2,850 mm
Augmented Reality (AR)
Shipping Information
Dimensions (LxWxH)
2,810 x 1,250 x 1,350 mm
2,810 x 1,250 x 1,350 mm
Approx. Weight
680 kg
680 kg
Country of Origin
Germany
Germany
Customs Tariff Number
731 100 99
731 100 99
Drawing
MB 020103-1.3000G
Primed
MB 020103-1.3000V
Galvanized
Illustrations and details may differ from the original.
