Standard vesselsConfigurator
We offer you standard vessels from 50 liters to 3,000 liters with 11 and 16 bar. High-pressure vessels, vacuum vessels, and other pressure vessels are also available and can be coated according to your requirements.
▲
- 50 l
- 90 l
- 150 l
- 250 l
- 350 l
- 500 l
- 750 l
- 1,000 l
- 1,500 l
- 2,000 l
- 3,000 l
- 4,000 l
- 5,000 l
- 6,000 l
- 7,000 l
- 8,000 l
- 9,000 l
- 10,000 l
▼
Details

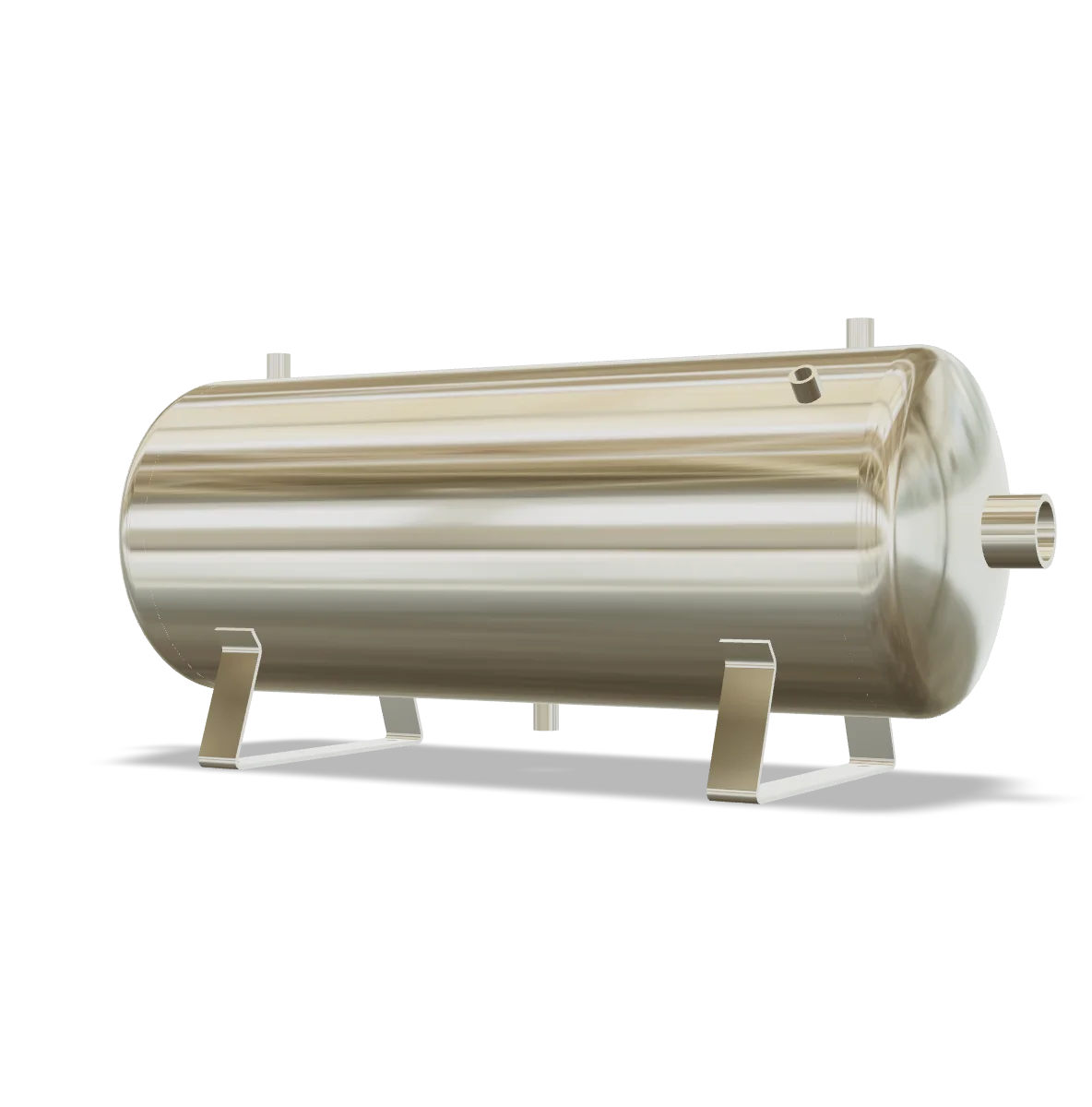

Pressure vessels 90 Liters, 11 bar, liegend
MB 030602-1.90
Features
Built according to
DGRL 2014/68/EU – AD 2000, Module: H1
DGRL 2014/68/EU – AD 2000, Module: H1
Operating Conditions
AD 2000 – S1 (10/2000): 1000 start-ups and 20% pressure fluctuation range
AD 2000 – S1 (10/2000): 1000 start-ups and 20% pressure fluctuation range
Ambient Temperatures
-10°C to +50°C
-10°C to +50°C
Dimensions
Approx. Weight
35 kg
35 kg
Diameter
360 mm
360 mm
Height
430 mm
430 mm
Augmented Reality (AR)
Shipping Information
Dimensions (LxWxH)
1,050 x 360 x 470 mm
1,050 x 360 x 470 mm
Approx. Weight
35 kg
35 kg
Country of Origin
Germany
Germany
Customs Tariff Number
731 100 91
731 100 91
Drawing
MB 030602-1.90
Primed / Galvanized
Illustrations and details may differ from the original.
